OIDC Setup With Authelia

A quick rundown of the technologies

What is Authelia?

Authelia is an open-source authentication and authorization server providing two-factor authentication and single sign-on (SSO) for your applications via a web portal. It acts as a companion for reverse proxies by allowing, denying, or redirecting requests. Authelia can be deployed alongside your other services to centralize identity management.

Setting up a Provider and Application in Authelia

Step 1: Install and Configure Authelia

Before setting up a provider and app, ensure that Authelia is installed and running by following the getting started and OIDC provider guides.

Step 2: Add a client

First, in Authelia's configuration.yml, at identity_providers → oidc → claims_policies you'll need to add a Claims Policy if you do not already have one with the specified claims:

# identity_providers:
#   oidc:
claims_policies:
    with_email: # You can name this however you want
        id_token:
            [
                "email",
                "email_verified",
                "groups",
                "alt_emails",
                "preferred_username",
                "name",
            ]

To read more about claims_policies and why you need it for RomM, see this section in the Authelia docs.

Then, in the same configuration.yml, under identity_providers → oidc → clients, add a new entry:

  • A random client_id and client_secret
  • public should be set to false.
  • redirect_uris should include your RomM instance's URL + /api/oauth/openid (e.g., http://romm.host.local/api/oauth/openid).
  • claims_policy is the name of the entry at claims_policies that you just added (or already had).
  • scopes includes openid, email and profile.
  • token_endpoint_auth_method should be set to client_secret_basic.
  • userinfo_signed_response_alg should be set to none.

Refer to the official docs for more details.

This entry should look like this:

#identity_providers:
#  oidc:
#    clients:
- client_id: "<randomly_generated>" # read above for how generate
  client_name: "RomM" # will be displayed in Authelia to users
  client_secret: "$pbkdf2-sha512$randomly_generated" # read above for how generate
  public: false
  authorization_policy: "two_factor" # or one_factor, depending on your needs
  grant_types:
      - authorization_code
  redirect_uris:
      - "http://romm.host.local/api/oauth/openid"
  claims_policy: "with_email"
  scopes:
      - "openid"
      - "email"
      - "profile"
      - "groups"
  userinfo_signed_response_alg: "none"
  token_endpoint_auth_method: "client_secret_basic"

Step 3: Configure RomM Environment Variables

To enable OIDC authentication in RomM, you need to set the following environment variables:

  • OIDC_ENABLED: Set to true to enable OIDC authentication.
  • OIDC_PROVIDER: The lowercase name of the provider (authelia).
  • OIDC_CLIENT_ID: The client ID copied from the Authelia application.
  • OIDC_CLIENT_SECRET: The generated output from Random Password.
  • OIDC_REDIRECT_URI: The redirect URI configured in the Authelia provider, in the format http://romm.host.local/api/oauth/openid.
  • OIDC_SERVER_APPLICATION_URL: The base URL for you Authelia instance, e.g. http://authelia.host.local.

Step 4: Set your Email in RomM

In RomM, open your user profile and set your email address. This email has to match your user email in Authelia.

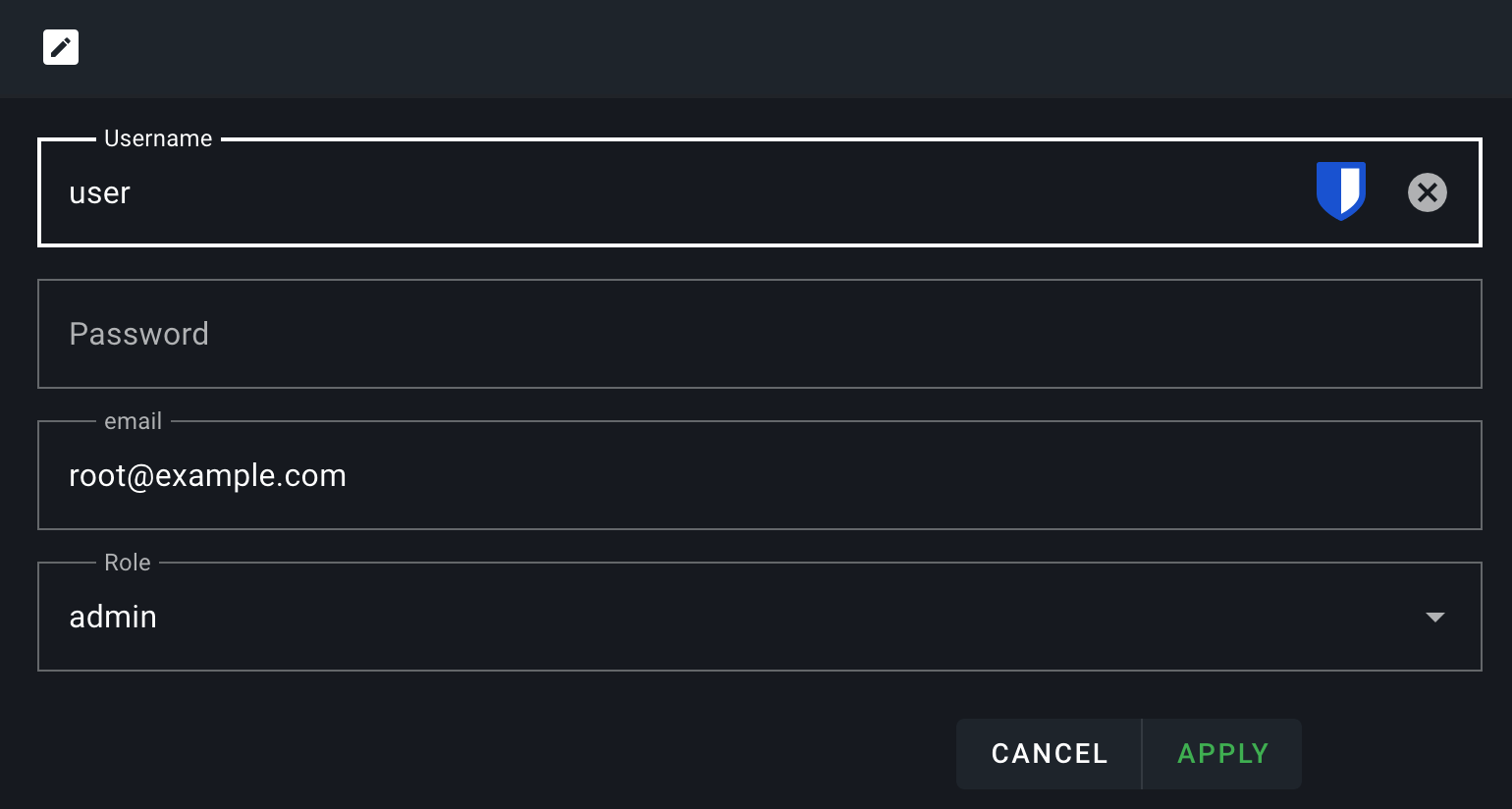

Set email

Step 5: Test the Integration

After configuring the environment variables, restart (or stop and remove) your RomM instance and navigate to the login page. You should see an option to log in using OIDC. Click on the OIDC button, and you'll be redirected to Authelia for authentication. Once authenticated, you'll be redirected back to RomM.

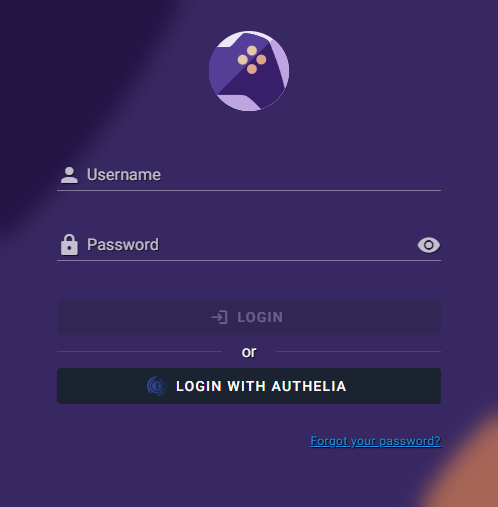

Login with OIDC
